Custom Case Company tel: (613) -822-0620

Underwater Kinetics Cases

Plastic Handle Metal Handle
Plastic Handle Metal Handle Plastic Catch Metal Catch



Vent 3" wheel on 822 and 827 case with retractable handle Panel Frame
Vent 3" wheel Panel Frame

FEATURES

Cases can withstand 2000 lb. ( 900 kg.) stacking loads and 7 ft. (2.1 m) drops onto concrete
Thick, lightweight, non coroding, high impact ABS shell
Silicone O-ring seals out water, salt air, dust and some gases
Will not dent, corrode or conduct electricity
Operating temperature - 20 to 160 degrees F ( - 29 to 71 degrees C )
Ultraviolet and ozone stabilized
Pressure equalization valve on dry cases ( not dry boxes )
Cases interlock in stacks
ABS and other plastic components can be glued to the case
Cases 821 to 309 meet airline carry-on size regulations
Full length hinge and stainless steel pin can be taken out for removable lid applications on some models.
Kinetics cases can be locked for added security
Pre-diced pluck foam is easily removed to form soft cavities

Click on small images to Zoom

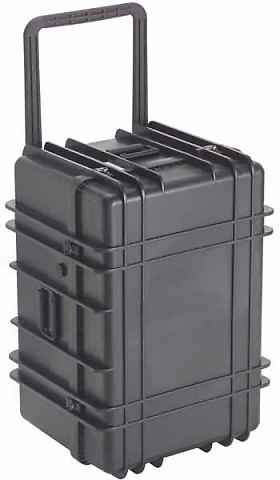

UK 1627 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

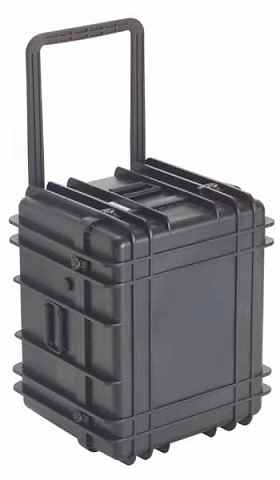

UK 1622 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

UK 1627 case

Internal Dim: 27x 18.1 x 15.9" (Lid 4.7, base 11.2)

External Dim: 30 x 20.3 x 17.8" (with wheels)

Weight (Empty): 29 lbs. (with wheels)

Weight (w/Foam): 34.75 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1622 case

Internal Dim: 22 x 18.1 x 15.9" (Lid 4.7, base 11.2)

External Dim: 25 x 20.3 x 10.3" (with wheels)

Weight (Empty): 26.34 lbs. (with wheels)

Weight (w/Foam): 31 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1427 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

1422 UK LoadoutCase

With wheels , Pull-out Handle & Metal HDW

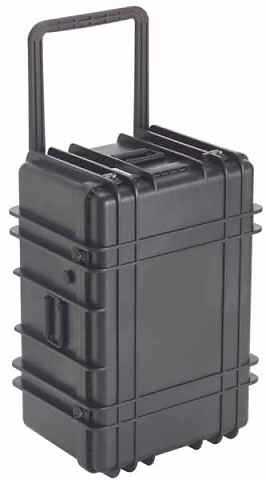

UK 1427 case

Internal Dim: 27 x 18.1 x 13.4" (Lid 2.2, base 11.2)

External Dim: 30 x 20.3 x 15.3" (with wheels)

Weight (Empty): 26.34 lbs. (with wheels)

Weight (w/Foam): 31.30 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

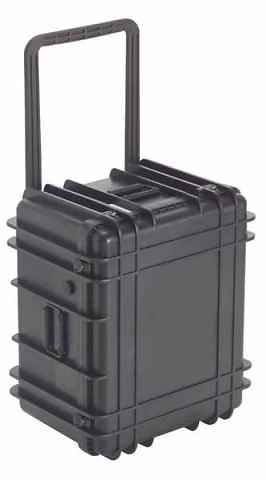

UK 1422 case

Internal Dim: 22 x 18.1 x 13.4" (Lid 2.2, base 11.2)

External Dim: 25 x 20.3 x 15.3" (with wheels)

Weight (Empty): 24.56 lbs. (with wheels)

Weight (w/Foam): 28.05 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1327 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

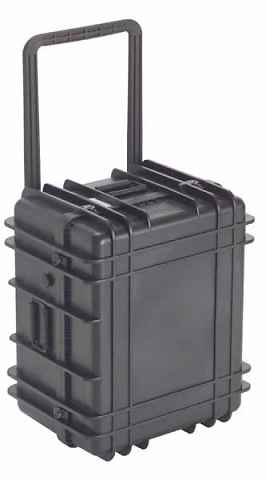

UK 1322 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

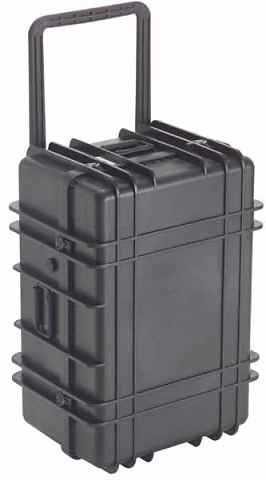

UK 1327 case

Internal Dim: 27 x 18.1 x 13.4" (Lid 4.7, base 8.7)

External Dim: 30 x 20.3 x 15.3" (with wheels)

Weight (Empty): 27.08 lbs. (with wheels)

Weight (w/Foam): 31.90 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1322 case

Internal Dim: 22 x 18.1 x 13.4" (Lid 4.7, base 8.7)

External Dim: 25 x 20.3 x 15.3" (with wheels)

Weight (Empty): 24.58 lbs. (with wheels)

Weight (w/Foam): 28.41 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1127 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

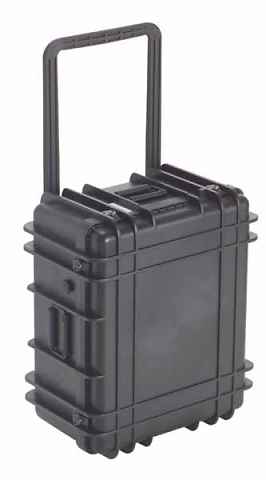

UK 1122 LoadoutCase

With wheels , Pull-out Handle & Metal HDW

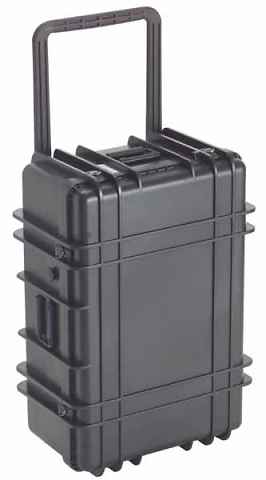

UK 1127 case

Internal Dim: 27 x 18.1 x 10.9" (Lid 2.2, base 8.7)

External Dim: 30 x 20.3 x 12.8" (with wheels)

Weight (Empty): 24.51 lbs. (with wheels)

Weight (w/Foam): 26.8 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 1122 case

Internal Dim: 22 x 18.1 x 10.9" (Lid 2.2, base 8.7)

External Dim: 25 x 20.3 x 12.8" (with wheels)

Weight (Empty): 19.55 lbs. or 22.40 lbs. (with wheels)

Weight (w/Foam): 22.90 lbs. or 25.73 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 metal twist lock

Handle: 3 spring loaded metal

UK 827 LoadoutCase

Standard (ABS Catches & Handle)

With wheels , Pull-out Handle & Metal HDW

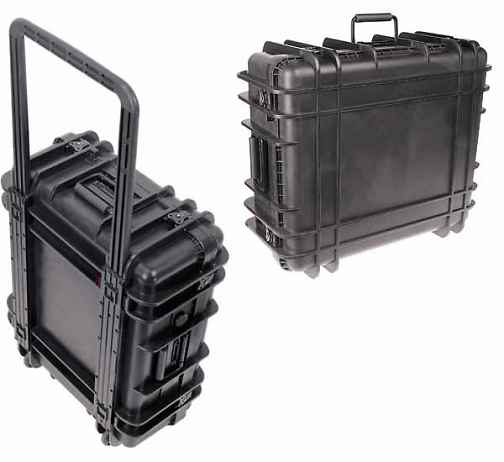

UK 822 LoadoutCase

Standard (Metal Catches & Handle)

With wheels , Pull-out Handle & Metal HDW

822 Dry Case

Internal Dim: 26.9 x 18.0 x 8.4" (Lid 2.2, base 6.2)

External Dim: 29.1 x 20.3 x 9.8" (no wheels.)

External Dim: 30 x 20.3 x 10.3" (with wheels)

Weight (Empty): 20.0 lbs. or 22.77 lbs. (with wheels)

Weight (w/Foam): 22.79 lbs. or 25.75 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 ABS snap or metal twist lock

Handle: 3 ABS plastic or spring loaded metal

822 Dry Case

Internal Dim: 21.9 x 18.0 x 8.4" (Lid 2.2, base 6.2)

External Dim: 24.1 x 20.3 x 9.8" (no wheels.)

External Dim: 25 x 20.3 x 10.3" (with wheels)

Weight (Empty): 18.0 lbs. or 20.77 lbs. (with wheels)

Weight (w/Foam): 20.35 lbs. or 23.10 lbs. (with wheels)

Colors: black

Inside: pluck foam included

Latches: 6 ABS snap or metal twist lock

Handle: 3 ABS plastic or spring loaded metal

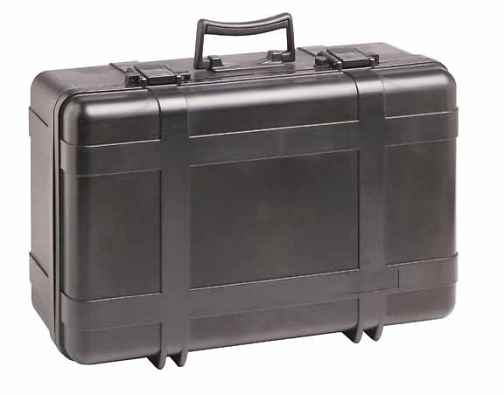

UK 821 UltraCase

Standard (ABS Catches & Handle)



UK 718 UltraCase

Standard (ABS Catches & Handle)

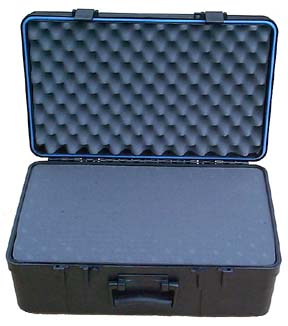

UK 821 Dry Case

Internal Dim: 20.9 x 12.9 x 8.4" (Lid 2.2, Base 6.2)

External Dim: 21.6 x 14.8 x 9.2"

Weight (Empty): 11 lbs.

Weight (w/Foam): 12.5 lbs.

Colors: black, yellow, gray, orang, corp. blue

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

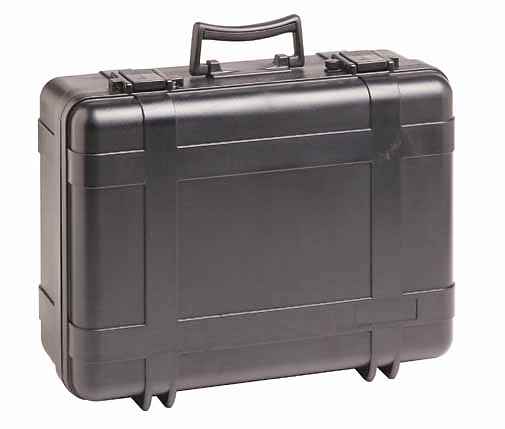

UK 718 Dry Case

Internal Dim: 17.8 x 12.8 x 6.8" (Lid 1.8, Base 5.0)

External Dim: 18.5 x 14.6 x 7.7"

Weight (Empty): 8.80 lbs.

Weight (w/Foam): 9.95 lbs.

Colors: black, yellow, gray, orange, corp. blue

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

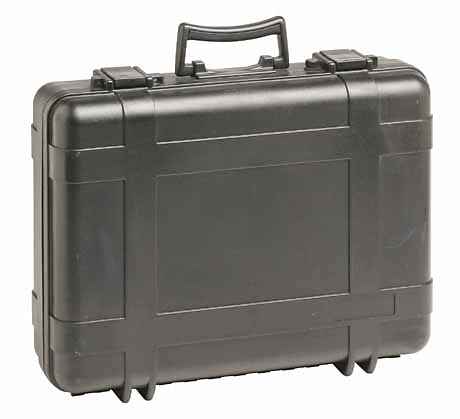

UK 518 UltraCase

Standard (ABS Catches & Handle)



UK 916 UltraCase

Standard (ABS Catches & Handle)



UK 518 Dry Case

Internal Dim: 17.8 x 12.8 x 5.1" (Lid 1.8, Base 3.3)

External Dim: 18.5 x 14.6 x 5.9"

Weight (Empty): 7.63 lbs.

Weight (w/Foam): 8.45 lbs.

Colors: black, yellow, gray, orange, corp. blue

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

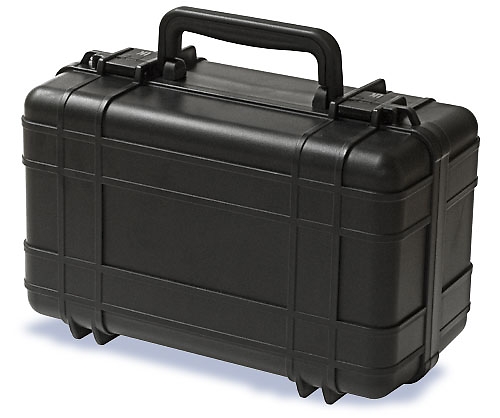

UK 916 UltraCase

Internal Dim: 16.9 x 9.9 x 8.1" (Lid 3.4, Base 4.7)

External Dim: 17.6 x 11.7 x 8.6"

Weight (Empty): 6.89 lbs.

Weight (w/Foam): 7.94 lbs.

Colors: black, yellow

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

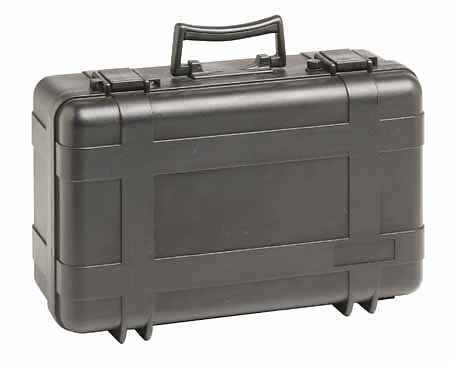

UK 716 UltraCase

Standard (ABS Catches & Handle)



UK 416 UltraCase

Standard (ABS Catches & Handle)



UK 716 Dry Case

Internal Dim: 16.9 x 10.0 x 6.5" (Lid 1.8, Base 4.7)

External Dim: 17.5 x 11.7 x 7.1"

Weight (Empty): 5.95 lbs.

Weight (w/Foam): 6.8 lbs.

Colors: black, yellow, gray, orange, corp. blue

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

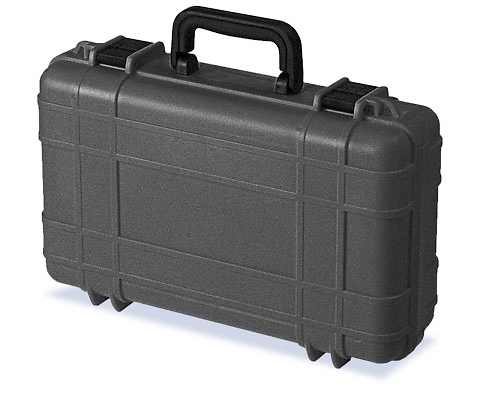

UK 416 UltraCase

Internal Dim: 16.9 x 9.9 x 4.6" (Lid 1.8, Base 2.8)

External Dim: 17.6 x 11.7 x 5.2"

Weight (Empty): 5.23 lbs.

Weight (w/Foam): 5.77 lbs.

Colors: black, yellow

Inside: pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal

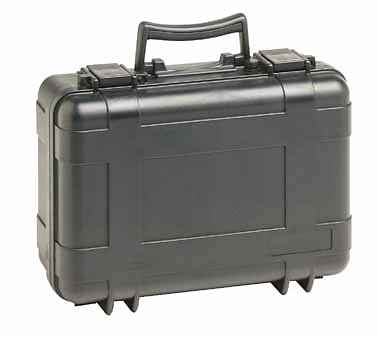

UK 613 UltraCase

Standard (ABS Catches & Handle)







UK 613 Dry Case

Internal Dim: 13.4 x 8.9 x 5.6" (Lid 1.8, Base 3.8)

External Dim: 14.0 x 10.6 x 6.1"

Weight (Empty): 4.45 lbs.

Weight (w/Foam): 4.95 lbs.

Colors: black, yellow, gray, orange, corp. blue

Inside:pluck foam

Latches: 2 ABS snap or metal twist lock

Handle: 1 ABS plastic or spring loaded metal





UK 409 Dry Box

Standard (ABS Catches & Handle)

UK 309 Dry Box

Standard (ABS Catches & Handle)



UK 409 Dry Case

Internal Dim: 8.5 x 6.0 x 3.7" (Lid 0.7, Base 3.0)

External Dim: 8.9 x 7.02 x 4.1"

Weight (Empty): 1.41 lbs.

Weight (w/Foam): 1.56 lbs.

Colors: black (blue clear view lid model also available)

Inside: pluck foam

Latches: 2 ABS snap

Handle: Flexible nylon strap

UK 309 Dry Case

Internal Dim: 8.5 x 6.0 x 3" (Lid 0.7, Base 2.3)

External Dim: 8.9 x 7.8 x 3.4"

Weight (Empty): 1 lb. 5 oz..

Colors: black, corp. blue, yellow

Inside: pluck foam

Latches: 2 ABS snap

Handle: Rigid Molded in place
